Description
The A22 is ATRIUM’s powerful Web-Based IP hybrid module. The flexibility of the A22 module allows it to be set either as a 2-door controller or expander (2 in 1).

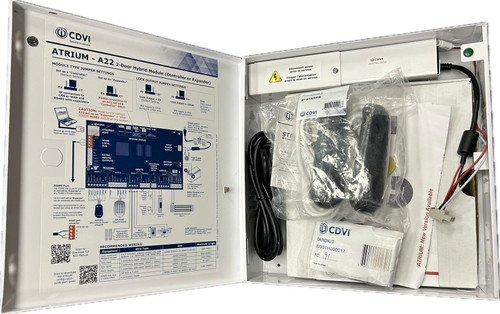

Kit includes:
- (1) A22 controller
- (2) STARPB readers
- (15) Credentials (5 CS, 5 KTAG, 5 DISCTAG)
- Atrium software
- Master and programming cards
Technical Specifications:
- Controls 2 doors and 2 readers
- Pre-assembled universal plug-in power supply (120V/240V) included
- Convert any A22 door controller to an A22EC elevator controller by simply updating the firmware for free (up to 256 floors).
- On-board Ethernet Port with AES 256-bit encryption
- On-board RS485 communication bus, 1220 m (4000 feet)
- On-board Embedded Web Server
- Auto-detect hardware modules
- Quick and easy card enrollment procedure
- Lock outputs: 2 (750mA @ 12VDC/each)
- Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250VAC, 7A @ 125VAC, 7A @ 30VDC
- 6 multi-purpose inputs (12 using zone doubling)
- Completely fuseless system
- Up to 10,000 users
- Up to 10,000 cards
- Up to 25,000 Event Buffer
- Ultra fast firmware updating
- FREE Management Software
- Maintenance-friendly snap on terminal connectors
- Comprehensive LED status indicators
