Description
- Dual voltage, 75W, 12V/2A and 24V/2A
- 4-Relay lock control outputs fused at 3A per output with each output selectable for FAI, failsafe, failsecure, 12V or 24V DC
- 8-DC Auxiliary outputs fused at 3A per output and field selectable for 12V or 24V DC
Product Overview

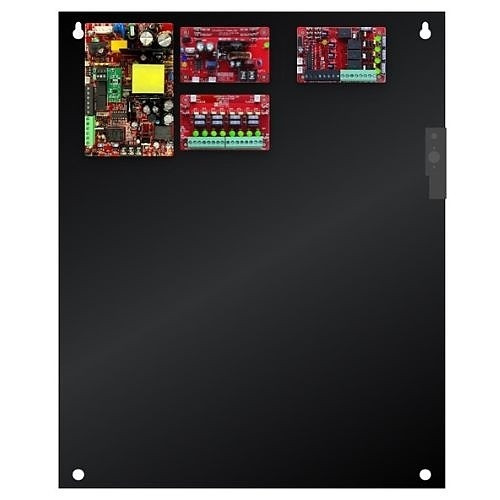

4-Door ProWire STANDARD enclosure, pre-wired / TIE WRAP for one KT-4 (controller not included). Includes lock set and tamper switch. Cabinet is pre-wired for (1) KT-4 controller on removable backplate with tie wrap wire management.
Main Features
- Dual voltage, 75W, 12V/2A and 24V/2A
- 4-Relay lock control outputs fused at 3A per output with each output selectable for FAI, failsafe, failsecure, 12V or 24V DC
- 8-DC Auxiliary outputs fused at 3A per output and field selectable for 12V or 24V DC
- Enclosure 20"x16"x4.5"
- UL/ULC
