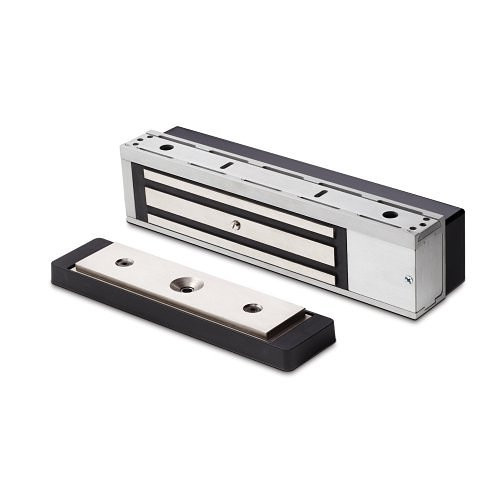

The Schlage M490DE Delayed Egress Locking System is designed to meet NFPA 101 Life Safety Code, while providing the same robust, easy to install, security of our M400 Series line of electromagnetic locks. The M490DE delayed egress can be configured to trigger by an internal "plunger switch," or by external contacts, such as an electrified exit bar or request to exit device. The M490DE can also be configured to initiate a 15 second delay and audible alarm before unlocking.

All M400 Series locks have automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. The M490DE is tested and certified to meet or exceed UL 294 and BHMA 1500lb. hold force requirements.

The M490DE electromagnetic lock comes in two configurations to meet your specific security needs. The M490DE provides basic security and delayed egress functionality, while the M490DEP provides intelligent sensing and reporting features needed to integrate with access control systems.

Applications

• Traffic control: 500 lb. rated hold force
• High security: 1000 lb. rated hold force
• Maximum security: 1500 lb. rated hold force
• Delayed egress models in 1500 lb. rated hold force
• Fail-safe operation on single or double doors
• Top jamb and compatible with HERCULITE brand glass doors
