The readers are for use exclusively with Keri's revolutionary access control system based on the PXL-250 Tiger Controller.

These readers are compatible with Keri’s KC-10X and MT-10X proximity card styles as well as the small, extremely robust PKT-10X Key Tag.  Additionally, they can read any Indala ASP Card or Tag if they are to be used in conjunction with a PXL-500 Controller.

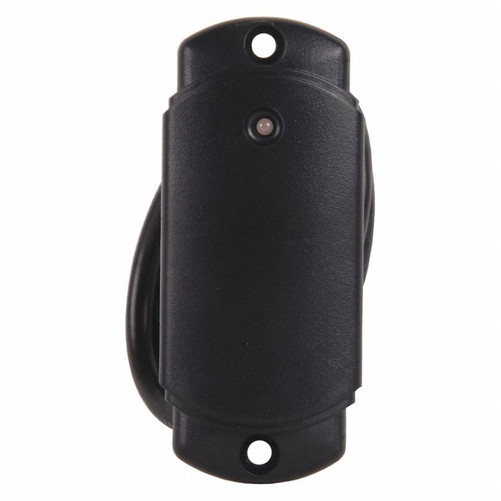

Keri's MS Series Proximity Readers are designed to blend aesthetics, read range performance, and small package size with an extremely thin profile into a product that is priced significantly less than competing proximity readers. The readers are for use exclusively with Keri's revolutionary access control system based on the PXL-250 Tiger Controller and were designed by some of the industry's top RF engineers, with many years of experience in proximity reader design. The smallest readers in the series are the MS-3000 MicroStar™ Reader and the MS-5000 MiniStar™ Reader. The MicroStar Reader measures just 3.4" long x 1.4" wide x 0.38" thick (86mm x 36mm x 10mm), and is designed to mount on a metal window or doorframe (mullion) or directly on a wall. Read range is up to 4" (10cm). The MiniStar Reader measures 4.3" long x 3.0" wide x 0.38" thick (109mm x 76mm x 10mm), and can be mounted on a single gang electrical box or flat on a wall. Read range is up to 6" (15cm) when mounted at least one inch off metal. If the reader is mounted using a metal electrical junction box with the thickness of the wall material separating the reader from the box, read range will be reduced. Both readers are attractively designed with a thin profile and modern appearance. The readers are compatible with all of Keri's proximity card styles as well as the small, extremely robust Keri Key Tag. Additionally, they can read any Motorola/Indala ASP Card or Tag if they are to be used in conjunction with a PXL-250 Controller.

Keri's MS Series Proximity Readers, compatible with the PXL-500P Tiger Controller are a family of readers that give superior performance in sleek, small, attractive packages. With over 10 years experience as the founders of Indala and 25 years at Keri, our RF proximity expertise is unmatched. MS Readers may also be used with NXT controllers via the NXT-RM3 Reader Interface Module.
